OP296GSZ-REEL, SOP-8, 2500pcs/reel, Manufacturer: Analog Devices [ADI], Quantity: 9800pcs IN STOCK, UNIT PRICE: US$1.10 each.(Call us for current price)

100% NEW & ORIGINAL factory sealed.

Distributor: Excellent Integrated System LIMITED

Website: www.eis-ic.com  www.eis-ltd.tk  www.fuchaoic.com

Email: sales@fuchaoic.com

Tel.: 00852-30777742

The OP296GSZ-REEL CBCMOS operational amplifier features micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from +3 V to +12 V of OP296GSZ-REEL make these amplifiers perfectly suited to monitor battery usage and to control battery charging. The dynamic performance of OP296GSZ-REEL, including 26 nV/√Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.

Parametrics
OP296GSZ-REEL absolute maximum ratings: (1)Supply Voltage: +15 V; (2)Input Voltage: +15 V; (3)Differential Input Voltage: +15 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range: P, S, RU Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +125℃; (7)Junction Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features
OP296GSZ-REEL features: (1)Rail-to-Rail Input and Output Swing; (2)Low Power: 60 mA/Amplifier; (3)Gain Bandwidth Product: 450 kHz; (4)Single-Supply Operation: +3 V to +12 V; (5)Low Offset Voltage: 300 mV max; (6)High Open-Loop Gain: 500 V/μV; (7)Unity-Gain Stable; (8)No Phase Reversal.

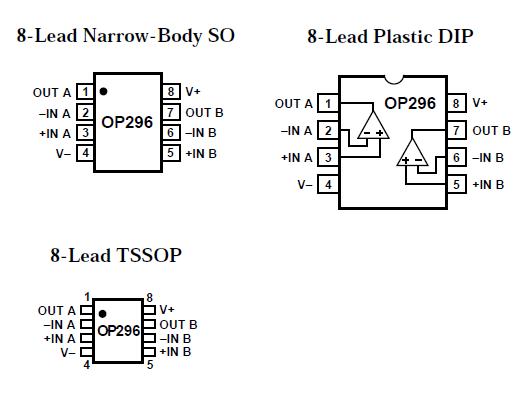

Diagrams

Datasheet download URL: http://www.analog.com/static/imported-files/data_sheets/OP196_296_496.pdf
