Current position: Home > Stock > MoreEPM7160SLC84-10N

(PartNumber) EPM7160SLC84-10N
(QTY) 2500 pieces IN STOCK
(Brand) ALTERA
(Package) PLCC-84,New&Original
(DC.) 11+RoSH

EPM7160SLC84-10(EPM7160SLC84-10N), PLCC-84, Manufacturer: ALTERA, Quantity: 2500pcs IN STOCK, UNIT PRICE: US$23.30 each.(Email or Call us for the CURRENT price)

100% NEW & ORIGINAL factory sealed. 360 days quality GUARANTEE!

Distributor: Excellent Integrated System LIMITED



Tel.: 00852-30777742

The EPM7160SLC84-10N high-density, high-performance PLD is based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EPM7160SLC84-10N provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz.
EPM7160SLC84-10N absolute maximum ratings: (1)Supply voltage With respect to ground: –2.0 to 7.0 V; (2)DC input voltage: –2.0 to 7.0 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature Ceramic packages, under bias: 150 ℃, PQFP and RQFP packages, under bias: 135 ℃.
EPM7160SLC84-10N features: (1)High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX architecture; (2)5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices: ISP circuitry compatible with IEEE Std. 1532; (3)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (4)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells.

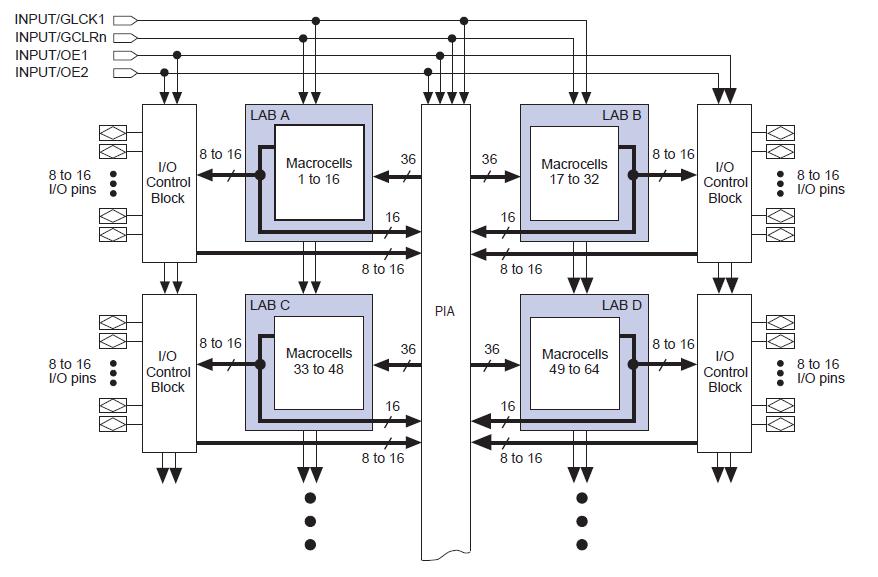

EPM7160SLC84-10N block diagram

Datasheet download URL:


Quantity Available 2500 pcs IN STOCK
Manufacturer Altera
Manufacturer Part Number EPM7160SLC84-10N
Description IC MAX 7000 CPLD 160 84-PLCC
Lead Free Status / RoHS Status Lead free / RoHS Compliant

Datasheets download MAX 7000 Device Family Data Sheet
Product Photos 84-PLCC
Product Training Modules The Max® CPLD Series
Standard Package 15
Category Integrated Circuits (ICs)
Family Embedded - CPLDs (Complex Programmable Logic Devices)
Series MAX® 7000
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 10
Number of Macrocells 160
Number of Gates 3200
Number of I /O 64
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 84-LCC (J-Lead)
Supplier Device Package 84-PLCC (29.31x29.31)
Packaging Tray
Catalog Page 647 (US2011 Interactive)
647 (US2011 PDF)
Other Names 544-2339-5

Relat number

Part Number MFG Package D/C
HS5104 EIS/HX DIP 2014+
TSOP34838 VISHAY DIP-3 2013
MAX4141CSD/T MAXIM SOP-14 pins 09+ROSH
NTCLE101E3473SB0 VISHAY 2pins,Thermistor 10+ROSH
EPM7160SLC84-10N ALTERA PLCC-84,New&Original 11+RoSH
